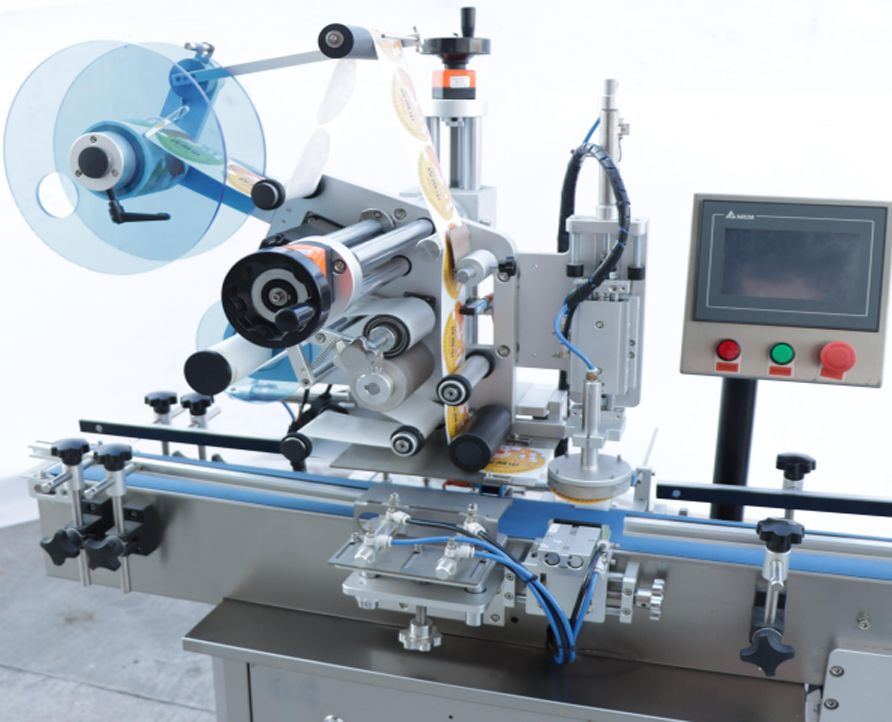

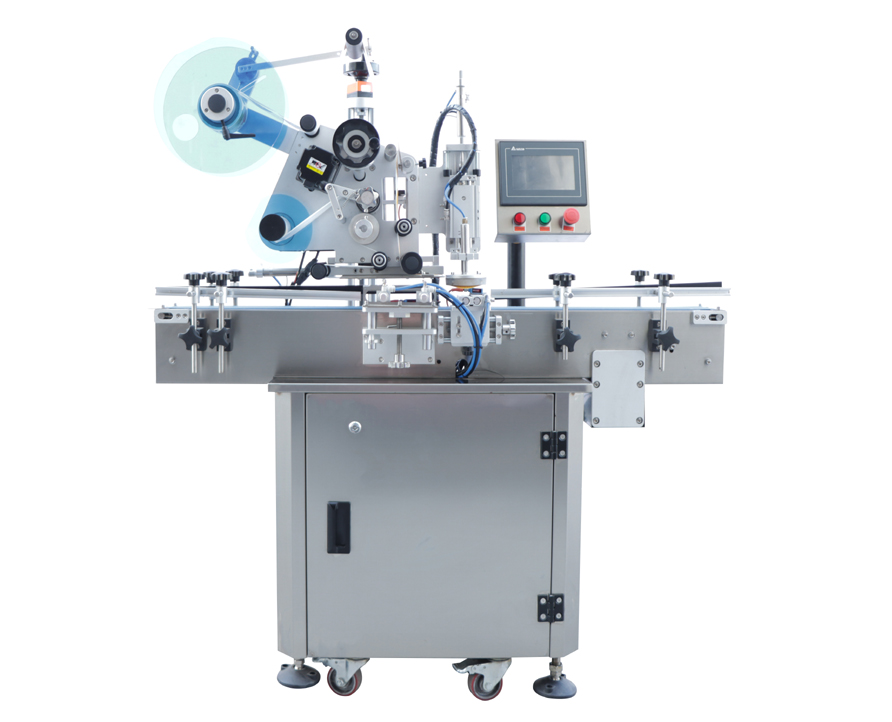

Pressure Sensitive Labeler For Caps FH-LFC25

High labeling accurate, with Stepper motor or Servo motor driving for label, More accurate; organization of label's road can avoid deflecting of it; Eccentric gear technology be used by Traction organization, ensure the label will not slip, and go forward accurate.

Product Description

● Wide application range, can meet product width labeling and self-adhesive film with product width 30mm~350mm, and replace the labeling mechanism to meet the uneven surface labeling;

● High precision of labeling, subdivided stepper motor or servo motor drive to send labels, accurate delivery; label belt bypass correction mechanism design, to ensure that the label does not shift left and right during the traction process; eccentric technology applied to traction mechanism, traction The label does not slip, ensuring accurate bidding;

● The adjustment seat has 6 adjustable directions and angles, the applicability is strengthened, and the conversion between different products becomes simple and time-saving;

● Intelligent control, automatic photoelectric tracking, with no object and no labeling, no standard automatic calibration and automatic label detection to prevent leakage and label waste;


Machine parameter:

Labeling speed: about 5-50 p/min (related to product size)

Labeling accuracy: ±1mm (does not include product label and other errors)

Applicable product size: length 30-280mm; height 30-200mm;

Applicable label range: length 10 ~ 260mm, width 10-155mm

Max label supply: OD 300 or less, inner diameter 76mm

Use environment: 0-50 °C

Relative humidity: 15-85%

Voltage specification: AC220V 50/60Hz

Dimensions: about L2200*W1400*H1750mm

Weight: about 160Kg


Labeling machine label parameters (for reference only):

Label spacing: 2-3mm ± 0.2mm

Label feeding method is coil material

Material: It is recommended to use Glassine body paper, it should to avoid cuts , which affects the normal operation of labeling;
