Double Head Vacuum Screw Capping Machine for Glass Bottle FH-VCM30

Fully automatic lifting type cap sorting machine, efficient and stable capping

The vacuum chamber adopts reliable fully sealed technology, and the vacuum degree of packaging reaches the ideal effect

Suitable for various shapes and sizes, with strong compatibility


Product Description

The screw cap torque and vacuum degree can be set as required to ensure that the vacuum degree absolutely meets the standard;

Suitable for capping bottles of various shapes and sizes, with strong compatibility;

It is convenient and quick to change the bottle type, and the replacement of two different bottle types can be completed within 10 minutes;

The structure is simple, and the operators can operate the equipment after simple training;

The sealing contact material of the screw cap is food-grade silica gel and fluorine rubber;



Technical Parameters:

Number of capping heads: 2

Capping speed: 24-34pcs/min

Adapt to bottle height: 50-180mm

Adapt to bottle diameter: ¢30-¢150mm

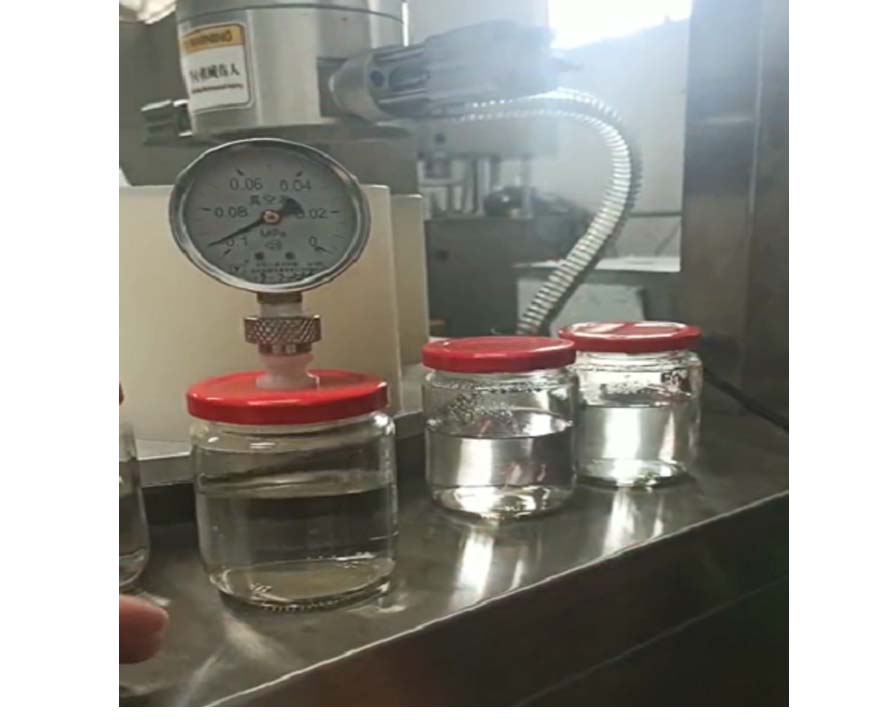

Vacuum degree in the bottle: -0.04- -0.07MPA

Screw cap torque: 5-15N.M

Voltage: AC 220V 50Hz

Total power: <2.5KW

Working air pressure (compressed air): ≥0.4MPa

Air consumption: about 0.3 cubic meters/min

Host weight: 500kG
