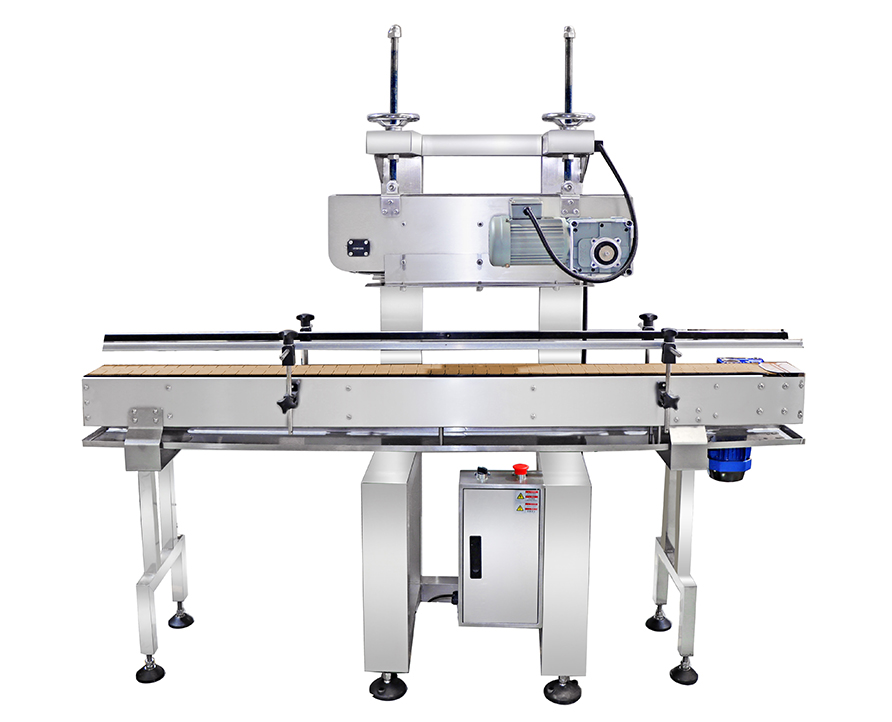

Crawler type capping machine、High-speed capper machine

Crawler type capping machine、High-speed capper machine

On a filling production line, the efficiency and quality of the capping process directly affect the overall line capacity and product sealing. Crawler type capping machines address industry pain points such as low efficiency, unstable yield rates, and cumbersome changeovers associated with traditional capping methods. With their significant advantages of multi-industry applicability and convenient line changeover, they have become the preferred packaging equipment for various fields, including food, pharmaceuticals, daily chemicals, and cosmetics.

Machine Features：

Crawler-Type Capping Structure: Utilizes a continuous conveyor belt compression method, ensuring caps are evenly compacted as they pass through the conveyor belt area. The capping force is stable and controllable, suitable for high-volume continuous production.

High Adaptability: Handles various bottle shapes, including round, square, and flat, with good compatibility with different cap types. Adjustments are simple when switching products.

Stable Capping Effect: The mechanical capping method is unaffected by differences in cap material or bottle shape, resulting in excellent sealing and reducing the risk of leakage.

Flexible Integration with Production Lines: Can be directly integrated into existing filling lines, enabling automated bottle feeding, capping, and discharging for continuous operation, minimizing manual intervention.

Multiple cap feeding methods to flexibly adapt to production needs

The machine can be flexibly configured with different cap feeding methods according to actual production conditions:

Manual cap feeding: Operators manually place the caps on the bottle mouth. Suitable for small-batch production, special bottle shapes, or scenarios with low automation requirements. Low investment cost and simple operation.

Automatic cap feeding via vibratory feeder: Automatically sorts and orients caps using a vibratory feeder, achieving automatic cap feeding. Suitable for scenarios with uniform cap specifications and medium-to-high-speed production. Stable and reliable operation.

Centrifugal cap feeding: Utilizes a centrifugal turntable to evenly throw and orient caps. Minimizes wear on cap surfaces and operates with low noise. Suitable for production scenarios with high requirements for cap appearance.

Applicable Industries:

Lubricating oil, antifreeze, coatings, chemicals. Large drum packaging is common in the chemical and automotive oil industries. The crawler type capping machine provides stable sealing for large-diameter drums, suitable for the capping needs of medium- to high-viscosity products.

Food and condiments: For large-capacity bottles such as soy sauce, vinegar, and cooking oil, the crawler type capping machine effectively ensures airtightness, suitable for large-scale production.

Daily chemical products: For irregularly shaped bottles such as laundry detergent and disinfectant, the crawler type structure adapts well to differences in bottle shape, maintaining consistent capping.

Technical Parameter：

1.Capping speed: 3400-3800 bottles/hour (depending on the actual size of the bottles)

2. Power supply: 220V 50-60Hz

3. Overall power: 0.35KW

4. Applicable bottle caliber range (mm): 35-140mm

5. Applicable lid diameter range (mm): 5-50mm

6. Applicable product height range (mm): 38-300mm

7. Net weight of equipment: 100KG

8. Equipment dimensions: length 1500 * width 700 * height 1500mm

The capping process, seemingly simple, directly impacts product quality and production efficiency. Choosing a stable, flexible, and highly adaptable crawler type capping machine adds an extra layer of assurance to your production line. Whether you're starting out with small-batch production or upgrading a fully automated line, it can reliably meet your needs.

The machine is compatible with various industries including lubricants, chemicals, food, pharmaceuticals, daily chemicals, and cosmetics. It boasts strong bottle type compatibility and flexible cap delivery methods, truly achieving multi-purpose functionality and safeguarding your production.
