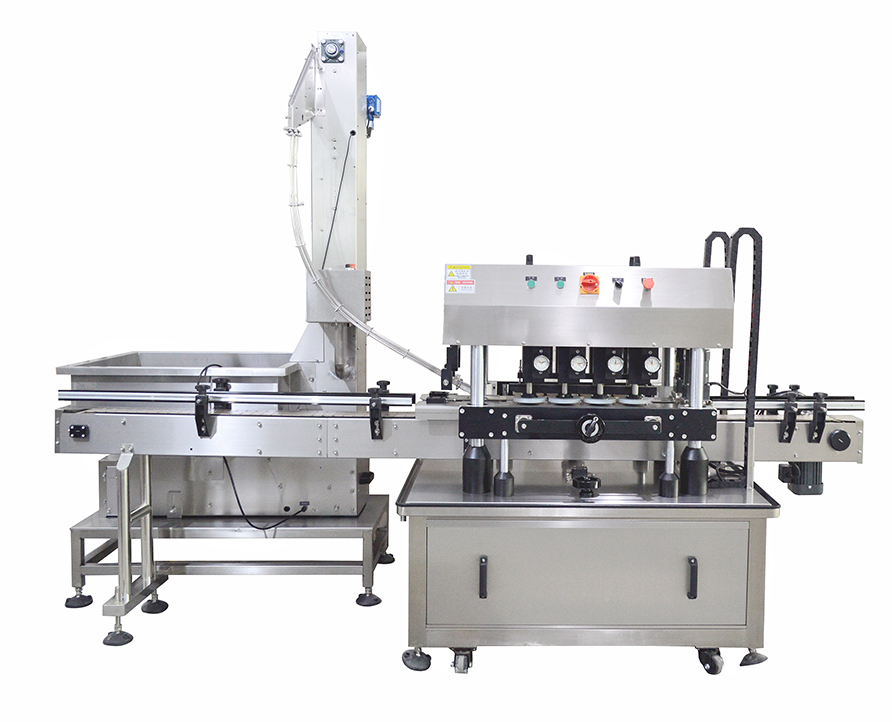

High Speed 8-wheel capping machine, linear capper machine, fully automatic screw capper machine

High Speed 8-wheel capping machine, linear capper machine, fully automatic screw capper machine

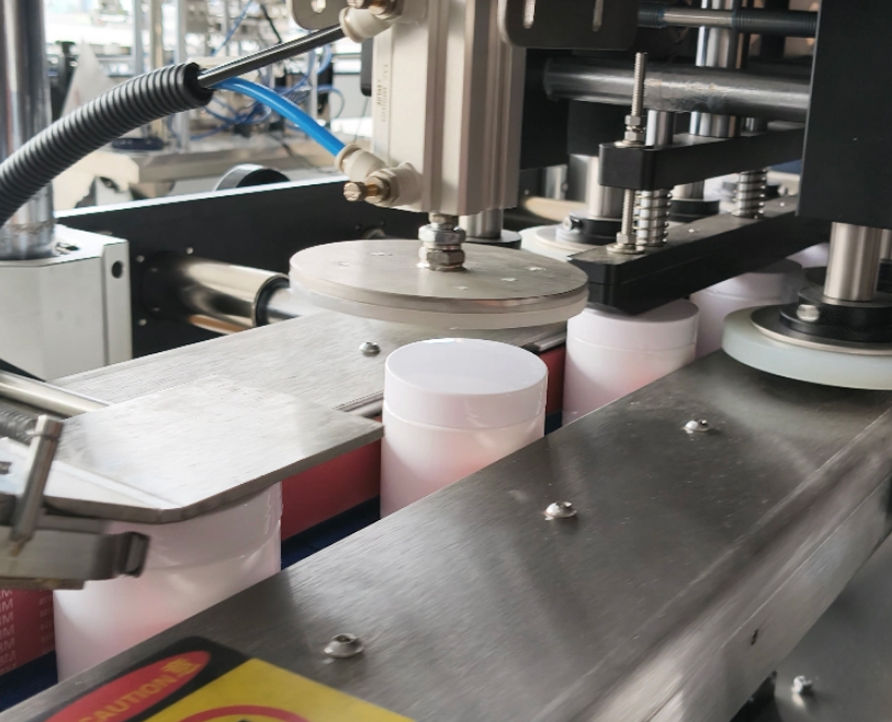

This machine adopts a high-efficiency cap sorting system that automatically sorts and conveys bottle caps. When the bottle is conveyed to the capping station, the cap is automatically placed down, pressed by the capping device, and then tightened at high speed by an eight-wheel cap-rolling device to ensure that every bottle is firmly sealed.

Core Operating Mode:

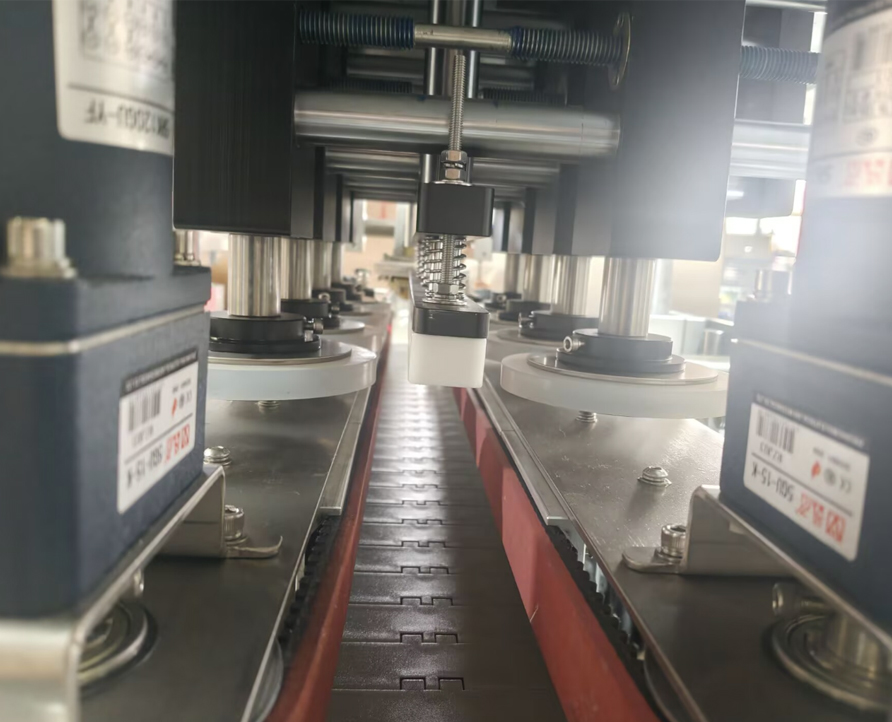

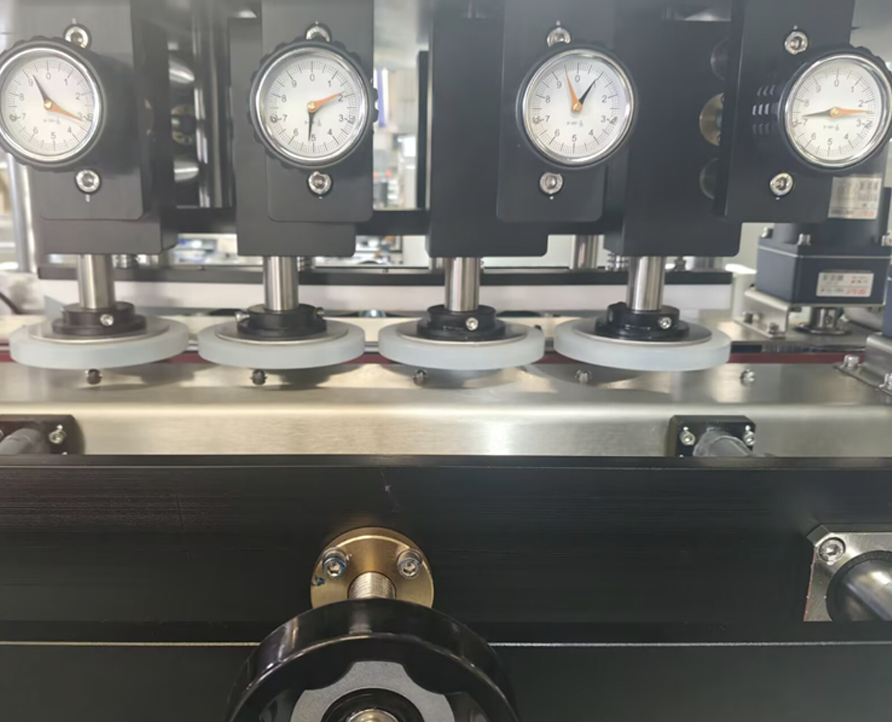

The machine is equipped with four sets of dedicated capping rollers, with clear division of labor, ensuring precision and efficiency:

The first set of rollers rotates in reverse to precisely align the threads of the bottle cap with the threads of the bottle neck, laying the foundation for capping;

The second, third, and fourth sets of rollers rotate in the forward direction to smoothly screw on the bottle cap, ensuring even sealing force and a tight seal.

Key Features of The Machine:

1. Superior materials: Constructed with stainless steel and lightweight anti-oxidation aluminum profiles, corrosion-resistant and easy to clean.

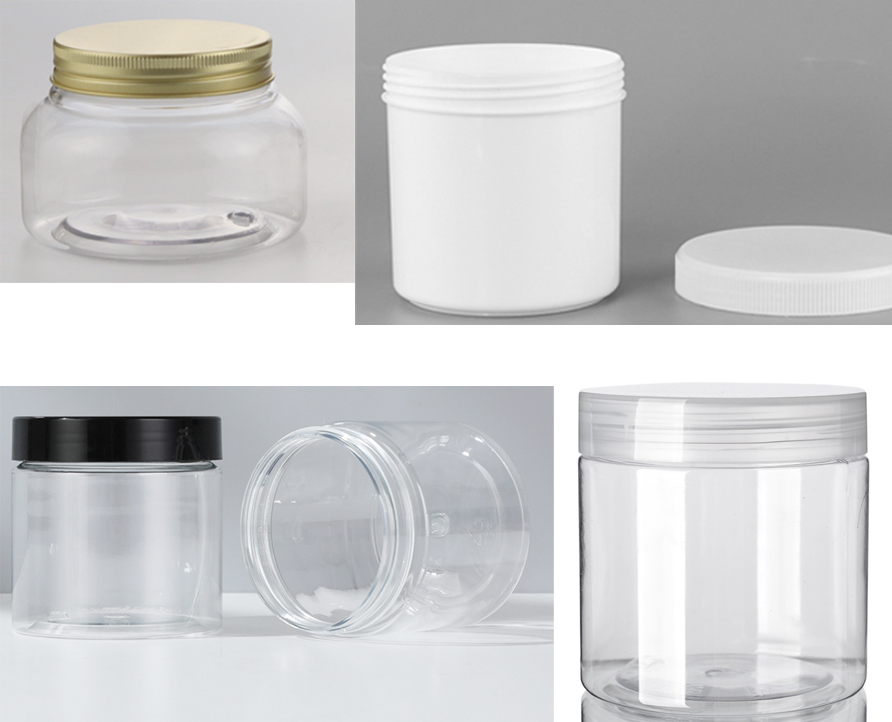

2. High compatibility: Adapts to various common bottle caps; easy to operate, no professional skills required.

3. Flexible and adjustable: Can be freely adjusted according to bottle height and cap size; cap tightness can be customized to meet different product needs.

4. Wear-resistant and durable: The capping rollers are made of high-quality wear-resistant silicone, not easily worn, extending the machine's service life.

5. Convenient bottle changeover: Equipped with an automatic lifting function for easy bottle type changes.

6. Seamless integration: Can seamlessly connect to filling production lines, achieving fully automated packaging and significantly improving production efficiency.

Machine Specification:

1. Capping speed: 1500-2400 bottles/hour (depending on the actual size of the bottles)

2. Power supply: 220V 50-60Hz

3. Overall power: 1.5KW

4. Net weight of equipment: 200KG Gross weight: 260KG

5. Equipment dimensions: length 2000 * width 800 * height 1600mm

For all types of businesses, including food factories, pharmaceutical factories, daily chemical factories, and pesticide factories, looking to upgrade capping efficiency and improve product quality, this fully automatic capping machine is the perfect choice!
