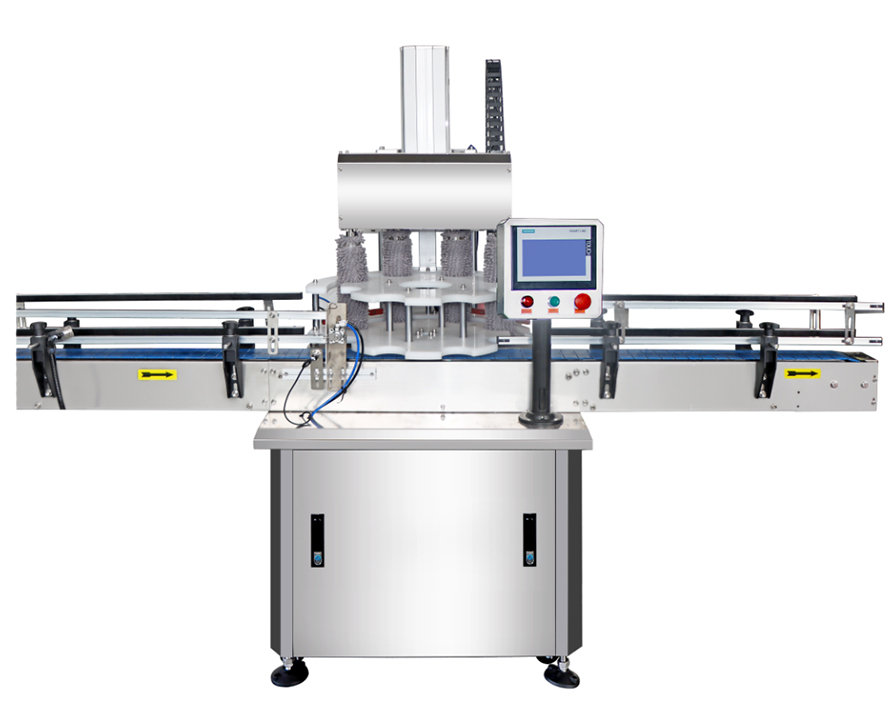

Four-head paper can cleaning machine, fully automatic food can inner wall cleaner machine, multi-head paper can cleaning machine

Four-head paper can cleaning machine, fully automatic food can inner wall cleaner machine, multi-head paper can cleaning machine

On paper can packaging production lines, the cleaning process often suffers from the following problems:

1. Low cleaning efficiency, becoming a bottleneck in the production line.

2. Can rotation during cleaning leads to deformation or surface damage to the paper cans.

3. Complex equipment adjustment and long changeover times.

4. Incomplete cleaning affects the quality of subsequent packaging.

To address these issues, GZFharvest has launched a four-head paper can cleaning machine specifically designed for paper can packaging..

Key Machine Features:

Four-Station Cleaning: Each paper can is cleaned sequentially at four stations, leaving no blind spots.

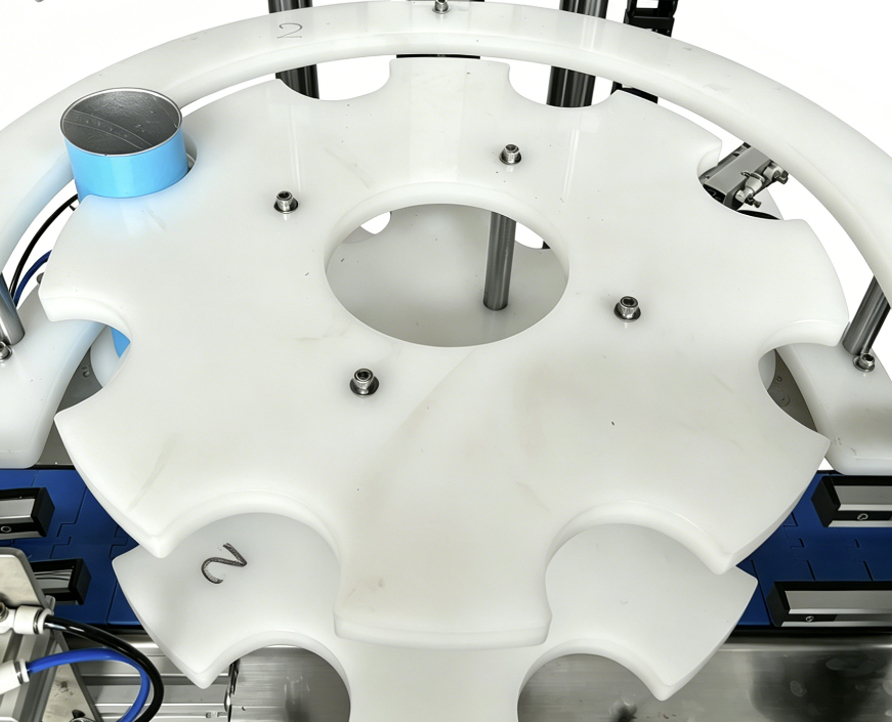

Rotary Structure: Smooth operation, precise positioning, suitable for continuous production.

The Can Not Rotation: The paper can remains stationary, preventing deformation and scratches.

Human-Machine Interface: Intuitive parameters, easy to use.

International Brand Components: Reliable electrical and mechanical components.

Cleaning design principle of the machine:

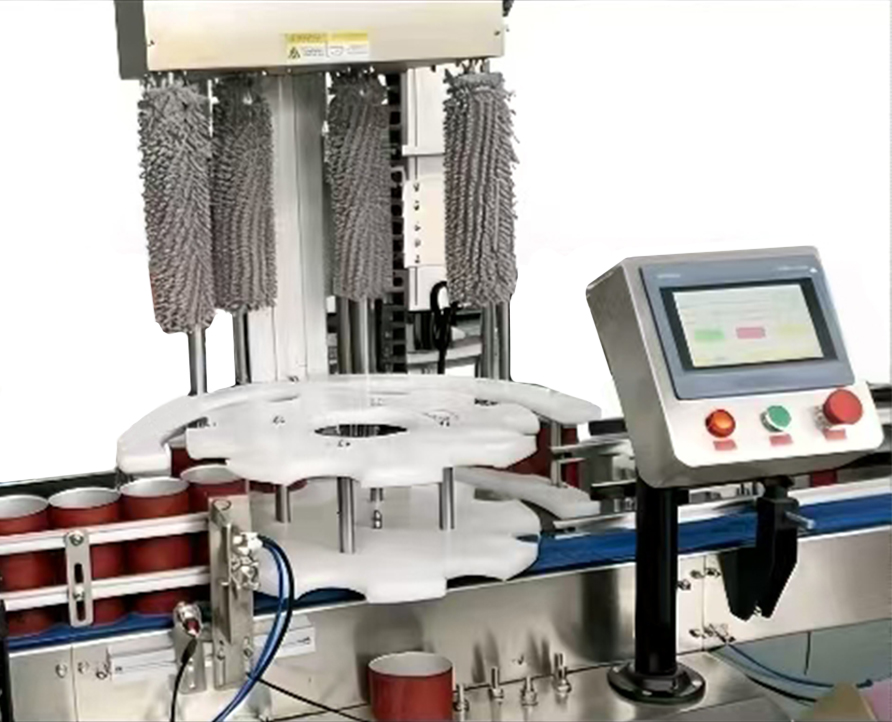

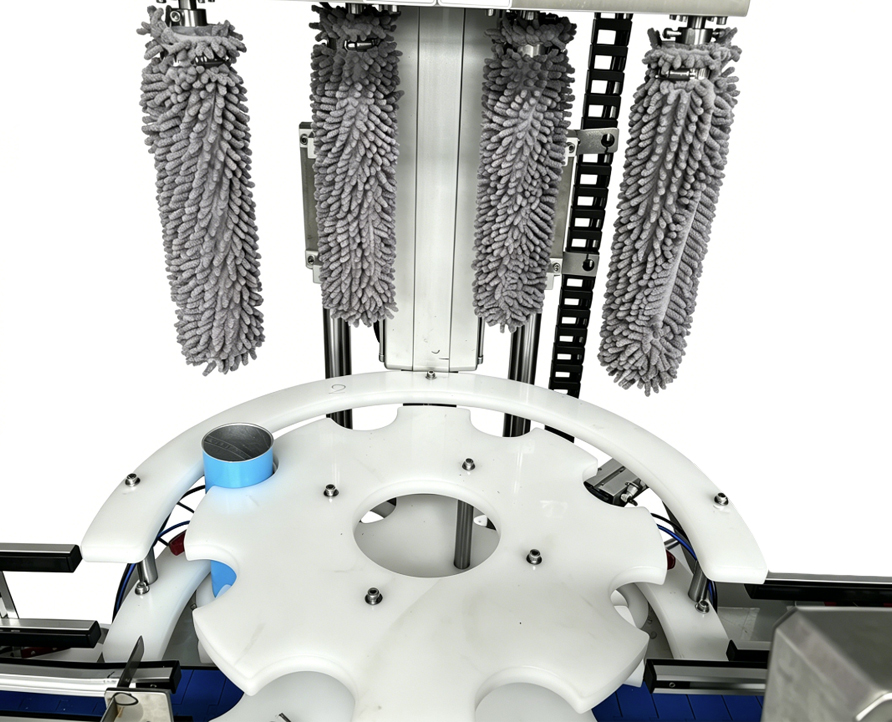

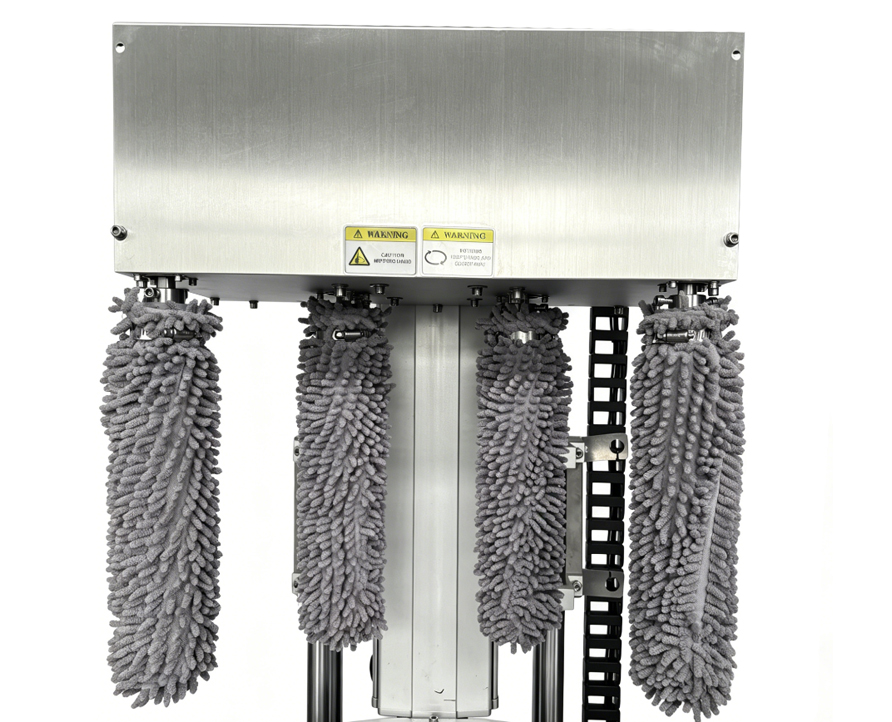

This machine uses a motor to drive the brush to rotate, and a cylinder to push the brush upward, cleaning the foreign objects inside the tank, thereby achieving a cleaning effect.

Main Parameters:

1. Cleaning Head: 4

2. Cleaning Speed: 30 cans/minute (depending on the size of the can)

3. Can Height: 35-220mm

4. Applicable Bottle Diameter: 35-130mm

5. Operating Temperature: 0～45℃, Operating Humidity: 35～85%

6. Power Supply: Single-phase AC220V 50/60Hz

7. Total Power: 0.6KW

8. Weight: Approx. 330KG

9. Dimensions: Length 1850 * Width 840 * Height 1450mm

Addressing the cleaning pain points of the paper can industry, this equipment boasts a stable structure, cleans thoroughly without damaging the cans, and effectively reduces labor costs. Its versatility allows it to adapt to various production lines, making it widely applicable. GZfharvest, a direct supplier specializing in paper can packaging equipment, offers reliable quality and comprehensive after-sales service, helping businesses achieve efficient production.
